Building an EC2 Security Scanner: 46 Checks, 137 Controls, Zero Excuses

Part 2 of 3 in the EC2 Security Series

Your security team wants a compliance report. Your next audit is in two weeks. You have 47 EC2 instances and no idea which ones are actually locked down.

In Part 1, I showed you everything that can go wrong with EC2 security. Public instances, open ports, IMDSv1, secrets in UserData, public snapshots, the list goes on.

Now let me show you how to find all of it. One command.

The Problem With Manual Checks

You could write a script. I've done it. Everyone has.

# Check IMDSv2...
aws ec2 describe-instances --query "..." --output json

# Check security groups...
aws ec2 describe-security-groups --filters "..." --output json

# Check EBS encryption...
aws ec2 describe-volumes --query "..." --output json

Repeat 46 times. Parse the JSON. Handle pagination. Deal with rate limits. Cover all edge cases. Then format a report for your security team. Then map everything to compliance frameworks. Then do it again next month.

That's not a script. That's a full-time job.

One Command

pip install ec2-security-scanner

Then:

ec2-security-scanner security

That's it. 46 security checks. 8 categories. 10 compliance frameworks. 137 controls. Every running EC2 instance in your account. Scored from 0 to 100.

What It Checks

Category A: Instance Security (8 checks)

ID	Check	What It Catches
A.1	IMDSv2 enforcement	Instances still using IMDSv1 (the Capital One attack vector)
A.2	Launch template IMDSv2	Templates that will create insecure instances
A.3	Public IP	Instances directly exposed to the internet
A.4	IAM instance profile	Instances with no IAM role (can't use AWS services securely)
A.5	Virtualization type	Paravirtual instances (legacy, less secure than HVM)
A.6	Multiple ENIs	Dual-homed instances spanning network boundaries
A.7	Detailed monitoring	CloudWatch basic vs. detailed monitoring
A.8	UserData secrets	AWS keys, passwords, API tokens hardcoded in launch scripts

A.8 scans for 24 secret patterns including AWS access keys, database passwords, GitHub tokens, Slack tokens, private keys, and more. It decodes the base64 UserData and runs regex matching against every line.

Category B: Network Security (11 checks)

ID	Check	What It Catches
B.1	Default security group	VPC default SG with rules (should be empty)
B.2	SSH open to world	Port 22 accessible from 0.0.0.0/0 or ::/0
B.3	RDP open to world	Port 3389 accessible from 0.0.0.0/0 or ::/0
B.4	High-risk ports	24 dangerous ports open to the internet
B.5	Remote admin ports	SSH, RDP, WinRM (5985/5986) open to world
B.6	VPC flow logs	No flow logs enabled on the VPC
B.7	NACL admin ports	Network ACLs allowing 0.0.0.0/0 to ports 22/3389
B.8	Source/dest check	Source/destination check disabled on ENIs
B.9	Unrestricted egress	Security groups allowing all outbound traffic
B.10	Unauthorized ports	Only ports 80/443 should be open to the world
B.11	VPN IKEv2	Site-to-Site VPN tunnels permitting the weaker IKEv1 (FSBP EC2.183)

The 24 high-risk ports (B.4): 20, 21, 22, 23, 25, 110, 135, 143, 445, 1433, 1434, 3000, 3306, 3389, 4333, 5000, 5432, 5500, 5601, 8080, 8088, 8888, 9200, 9300.

Category C: Storage Security (7 checks)

ID	Check	What It Catches
C.1	EBS volume encryption	Unencrypted attached volumes
C.2	EBS default encryption	Account-level EBS encryption not enabled
C.3	Public EBS snapshots	Snapshots restorable by anyone
C.4	EBS backup coverage	Volumes not covered by AWS Backup
C.5	Launch template EBS encryption	Templates creating unencrypted volumes
C.6	Public AMIs	Account-owned AMIs shared publicly
C.7	EBS snapshot block public access	Account-level snapshot public-access not blocked (FSBP EC2.182)

Category D: Access Control (4 checks)

ID	Check	What It Catches
D.1	IAM role permissions	AdministratorAccess, PowerUserAccess, or *:* wildcards
D.2	Key pair usage	SSH key pairs without SSM management
D.3	Serial console	EC2 serial console access enabled at account level
D.4	Instance Connect	No EC2 Instance Connect endpoints in the VPC

Category E: Logging & Monitoring (4 checks)

ID	Check	What It Catches
E.1	CloudTrail	No active trail with logging enabled
E.2	CloudWatch alarms	No alarms configured for the instance
E.3	SSM managed	Instance not in Systems Manager inventory
E.4	GuardDuty	GuardDuty disabled, missing runtime or EBS malware protection

Category F: Patch & Vulnerability (3 checks)

ID	Check	What It Catches
F.1	SSM patch compliance	Missing or failed patches
F.2	AMI age	AMIs older than 180 days
F.3	Inspector v2	EC2 scanning disabled or critical/high findings present

Category G: Network Exposure (5 checks)

ID	Check	What It Catches
G.1	Unused Elastic IPs	EIPs with no association (cost waste + potential attack surface)
G.2	Launch template public IP	Templates assigning public IPs to instances
G.3	Subnet auto-assign public IP	Subnets that auto-assign public IPs
G.4	VPC Block Public Access	BPA not blocking internet gateway traffic
G.5	Transit Gateway auto-accept	Transit Gateway auto-accepting VPC attachments

Category H: Tagging & Inventory (3 checks)

ID	Check	What It Catches
H.1	Required tags	Missing Name, Environment, or Owner tags
H.2	Stopped instances	Instances stopped for more than 30 days
H.3	Unused security groups	SGs not attached to any network interface

Plus a region-level launch template audit: because describe-instances does not tell you which launch template an instance came from, the scanner inspects every launch template in the region directly for IMDSv2 enforcement, public IP assignment, and EBS encryption. That is the 46th check, reported once per region rather than per instance.

How Scoring Works

The scanner produces two independent scores, because not every problem belongs to a single instance.

• An instance score (0 to 100) for what each instance controls: its metadata options, its security groups, its volumes, its IAM role, its UserData.
• An environment score (0 to 100) for account and VPC wide posture: GuardDuty, CloudTrail, VPC Block Public Access, the default security group, flow logs, public AMIs, and so on.

Account and VPC findings are counted once per scan, not once per instance. If GuardDuty is off, that is one regional problem, not a penalty multiplied across fifty instances. This keeps the per-instance average honest and means a framework's compliance percentage does not change with fleet size.

Instance score

Every instance starts at 100. Deductions by severity:

CRITICAL

• Secrets in UserData: -25
• Public EBS snapshots of the instance's volumes: -20

Security group exposure (non-stacking, highest single penalty only):

• High-risk ports open to the world (data store ports like 3306, 5432, ...etc): -20
• SSH open to the world: -15
• RDP open to the world: -15
• Remote admin ports open: -15
• Unauthorized ports open (anything other than 80/443): -10

If an instance has both SSH and a high-risk port open, it loses 20 points, not 35. All overlapping “ports open to 0.0.0.0/0” penalties collapse to the single highest one.

HIGH

• IMDSv2 not enforced: -15
• Public IP assigned: -15
• IAM admin/wildcard access: -15
• Inspector v2 disabled or critical/high findings: -8

MEDIUM (-5 to -10): unencrypted EBS volumes, SSM patch non-compliance, no IAM instance profile, source/dest check disabled, not SSM managed, subnet auto-assign public IP, no CloudWatch alarms, stale AMI, no detailed monitoring, paravirtual instance, key pair without SSM.

LOW (-2 to -3): multiple ENIs, no backup plan, unrestricted egress, missing tags, long-stopped instance, IMDSv2 hop limit above 2.

Environment score

Account and VPC posture starts at 100 and is scored once per scan:

• Public AMIs: -20
• Default security group has rules: -10
• EBS snapshot block public access off: -10
• Transit Gateway auto-accept: -10
• GuardDuty disabled: -10
• VPC Block Public Access not blocking: -10
• CloudTrail disabled: -10
• VPN tunnels permitting IKEv1: -10
• No VPC flow logs: -10
• Launch templates without IMDSv2, assigning public IPs, or with unencrypted EBS: -10 / -10 / -5
• EBS default encryption disabled, serial console enabled, NACL admin ports open: -5 each
• Unused security groups: -2, unused Elastic IPs: -2, no Instance Connect endpoint: -1

Both scores are max(0, 100 - total_deductions).

Score	Rating	What It Means
90-100	Excellent	Keep doing what you're doing
70-89	Good	Minor gaps to address
50-69	Needs Improvement	Medium-priority fixes needed
0-49	Critical	Stop everything and fix this now

Architecture

Here's why it's fast and why it won't hammer your AWS API limits. The scanner uses a three-tier architecture to minimize API calls:

Tier 1: Account-level (run once): EBS default encryption, serial console, GuardDuty, CloudTrail, public AMIs, unused EIPs, Transit Gateway, VPC Block Public Access. These results are shared across all instances.

Tier 2: VPC-level (run once per VPC): Default security group, VPC flow logs, NACL rules, Instance Connect endpoints. Results are keyed by VPC ID.

Tier 3: Instance-level (parallel): Everything else. Each instance is scanned in its own thread using ThreadPoolExecutor. Thread safety is handled via threading.local(), each thread gets its own boto3 session.

Security group rules are fetched once per instance and reused across 6 checks (B.2 to B.5, B.9, B.10). No redundant API calls.

Compliance Mapping

Every check maps to controls across 10 compliance frameworks:

Framework	Controls
AWS Foundational Security Best Practices	32
NIST SP 800-53 Rev5	27
ISO 27001:2022	17
SOC 2 Trust Service Criteria	13
PCI DSS v4.0.1	12
HIPAA Security Rule	10
GDPR (EU) 2016/679	8
CIS AWS Foundations v5.0	7
ISO 27017 (Cloud-Specific)	7
ISO 27018 (PII in Cloud)	4
Total	137

The compliance report shows pass/fail for every control, per instance. Hand it to your auditor.

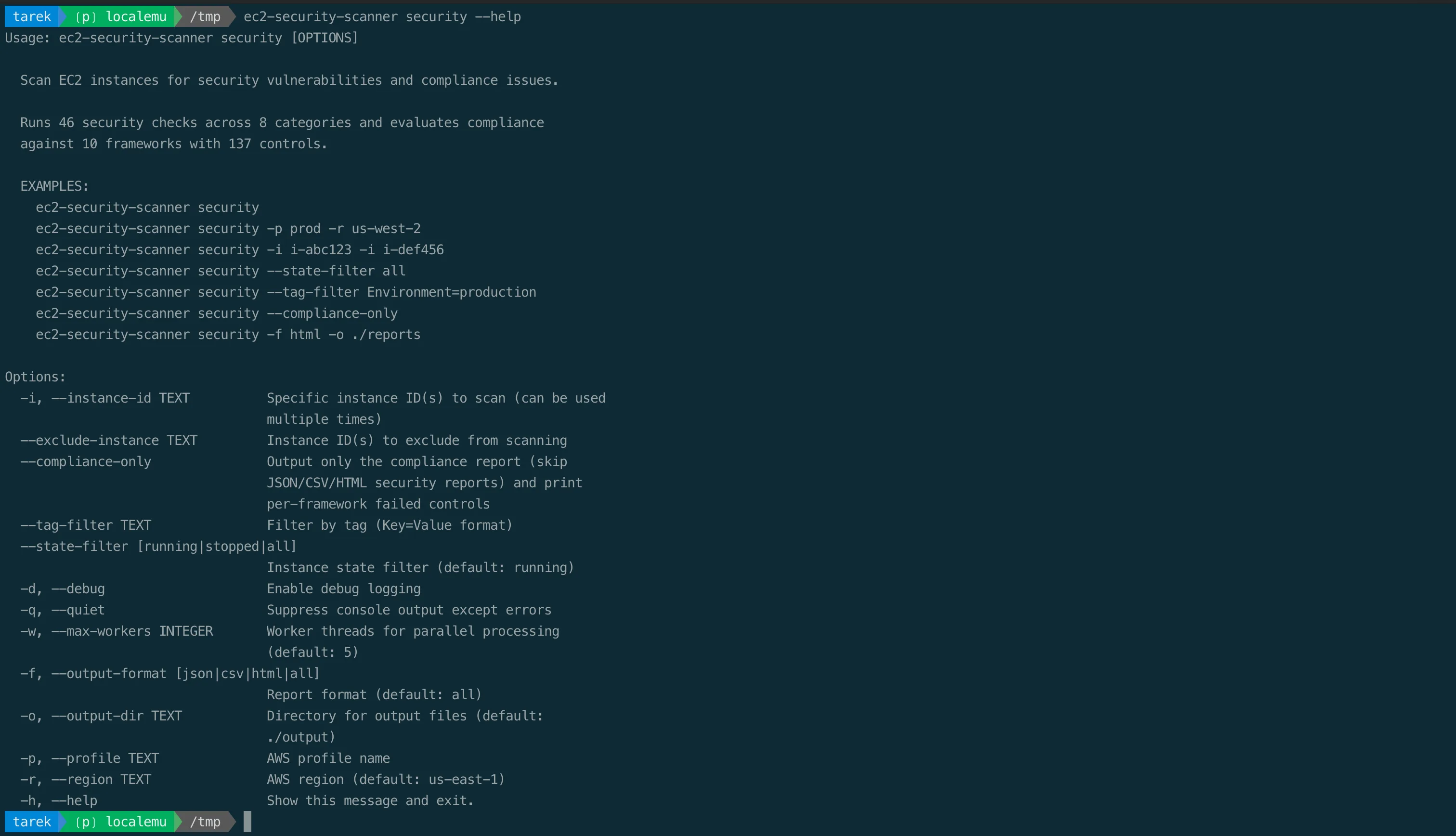

CLI Options

ec2-security-scanner security [OPTIONS]

Option	Default	What It Does
-i, --instance-id	all	Scan specific instance(s)
--exclude-instance	none	Skip specific instance(s)
--tag-filter	none	Filter by tag (Key=Value)
--state-filter	running	running, stopped, or all
-r, --region	us-east-1	AWS region to scan
--compliance-only	off	Generate compliance report only
-p, --profile	none	AWS CLI profile
-o, --output-dir	./output	Where to save reports
-f, --output-format	all	json, csv, html, or all
-w, --max-workers	5	Parallel threads
-q, --quiet	off	Suppress console output
-d, --debug	off	Debug logging

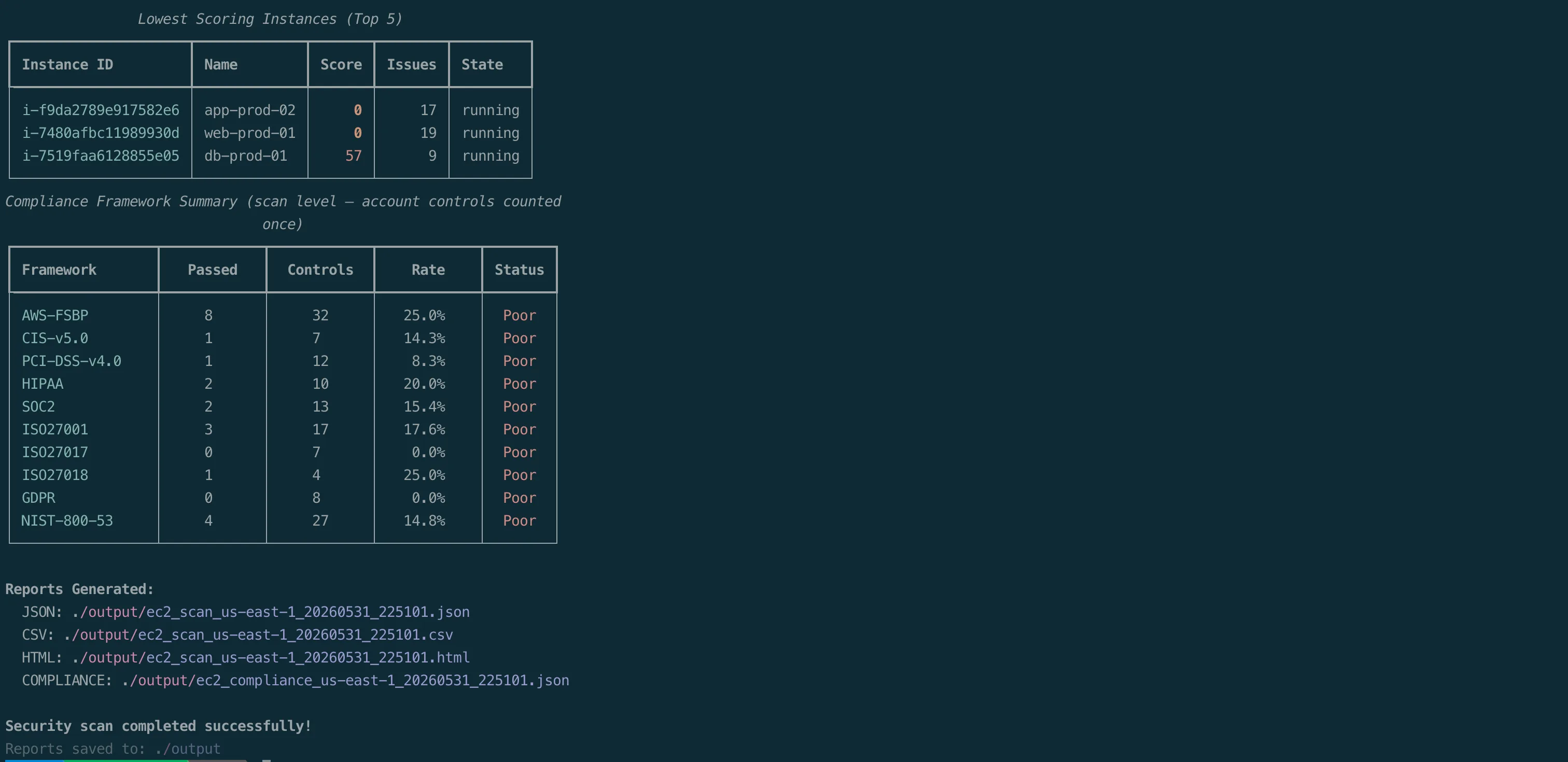

Output

You get four files:

JSON: Full scan results. Every check, every instance, every detail. Feed it to your SIEM, pipe it to jq, store it in S3.

CSV: Spreadsheet-friendly. All key metrics and compliance status. For the people who live in Excel.

HTML: Interactive dashboard with Chart.js. Executive summary, score distribution chart, compliance overview, severity breakdown, sortable instance table, critical findings list. The one you show management.

Compliance JSON: Per-instance compliance evaluation. Pass/fail for every control across all 10 frameworks. The one you show auditors.

Scan files use the pattern ec2_scan_{region}_{timestamp}.{format}. The compliance report uses ec2_compliance_{region}_{timestamp}.json.

Quick Start

# Install
pip install ec2-security-scanner

# Scan all running instances in us-east-1
ec2-security-scanner security

# Scan specific instances
ec2-security-scanner security -i i-0123456789abcdef0

# Scan with a profile and region
ec2-security-scanner security -p production -r eu-west-1

# Only instances with specific tags
ec2-security-scanner security --tag-filter "Environment=production"

# Generate compliance report only
ec2-security-scanner security --compliance-only

# Scan stopped instances too
ec2-security-scanner security --state-filter all

What It Doesn't Do

It's read-only. Describe, List, Get. That's it.

Can't create. Can't modify. Can't delete. Can't access your data or read your volumes. All read-only permissions, no *:* in sight. Full IAM policy is in the README.

What's Next

In Part 3, we'll go through every finding category and show you exactly how to fix each issue, with AWS CLI commands, Terraform snippets, and console steps.

Because finding the problems is step one. Fixing them is the whole point.

Support the Project

The scanner is open source and built for the community. If it caught something real in your account, here is how to pay it forward:

• Star it on GitHub so more engineers can find it: github.com/TocConsulting/ec2-security-scanner
• Open a pull request if you fix a bug or tighten a check.
• Propose a new check or framework by opening an issue. Real-world gaps make the best feature requests.
• Share it with your team and your network. Visibility is what keeps an open-source security tool alive.

Cloud attacks are getting faster and more automated in the AI era. The more contributors and eyes on tools like this, the harder we make it for attackers. Every star, issue, and pull request pushes cloud security forward.

GitHub: github.com/TocConsulting/ec2-security-scanner  |  PyPI: pypi.org/project/ec2-security-scanner
